Scaled-up Joule Heating Systems(50 mL or 300 mL)

Date：2026-04-09

FJH-50mL/FJH-300ml

Four years of R&D · Hundred-gram-scale ultra-high temperature production

The SaiYin Rapid Joule Heating System is a breakthrough platform based on high-power rapid joule heating technology, purpose-built for ultra-high temperature synthesis and scalable production of graphene, inorganic nanomaterials, metal compounds, and advanced functional powders. Capable of reliably achieving 3000 °C with hundred-gram-scale throughput, it seamlessly bridges laboratory research and pilot production—accelerating the industrialization of next-generation materials.

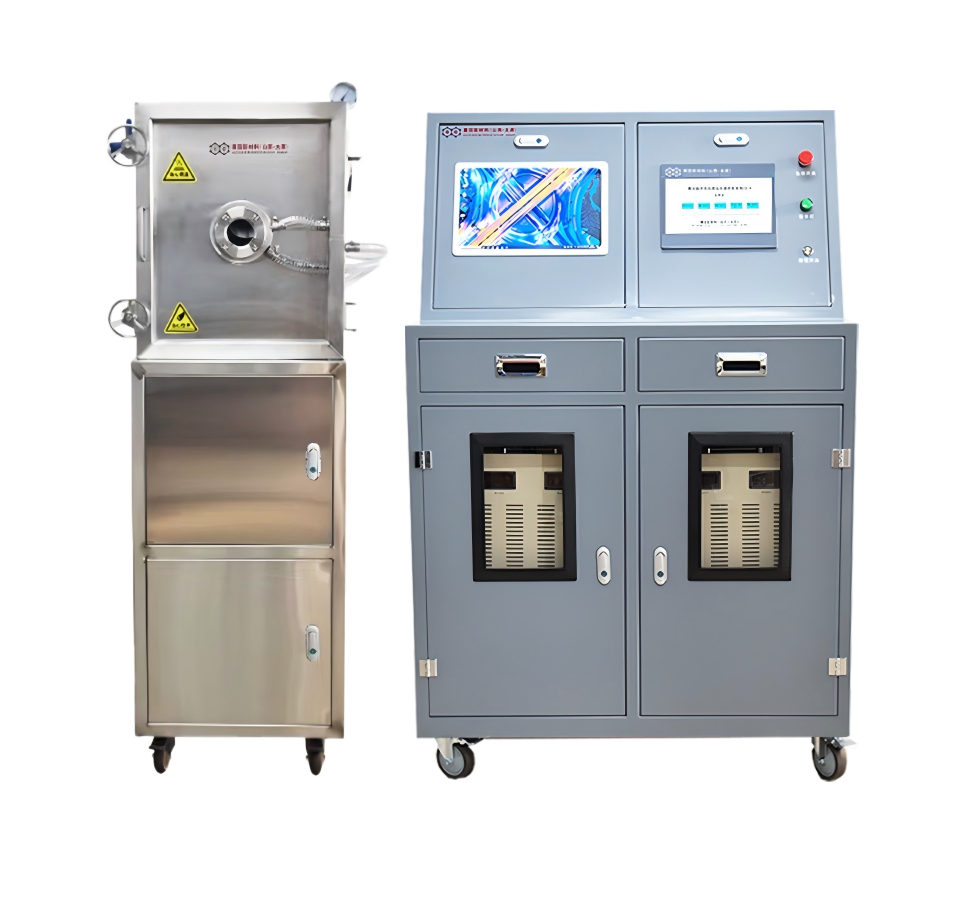

300 mL scaled-up Joule heating system(1)

Key Features

⚡

Scalable Capacity

10/50/300 ml configurations for R&D and pilot-scale production.

🔥

Ultra-Fast Heating

Rates up to ~10³ °C/s, reaching target temperatures in milliseconds.

🌡️

Extreme Temperature

Up to 3200 °C, unlocking diverse advanced material systems.

🔧

Multi-Mode Discharge

Stepwise DC ramp, pulsed, linear discharge, and linear voltage ramp.

✅

Streamlined Operation

Intuitive interface lowers the barrier to high-temperature synthesis.

🛡️

Industrial Reliability

Industrial-grade components with multiple safety interlocks.

Specifications & Installation

Model / Patent	FJH-300ml (FJH-50ml available) \| ZL 202421465723.4
Maximum Temperature	3200 °C
Heating Rate	~10³ °C/s
Discharge Modes	Stepwise DC / Pulsed / Linear discharge / Linear ramp
Power (Control Cabinet)	380 V 3-phase, 100 A breaker, ≥35 kW/40 kW
Power (PC/Vacuum Pump)	AC 220 V / 10 A (with protective earth)
